3D FIXTURE DESIGN
Fixture holding 5 parts to turn OD in lathe |
Designed in Solidworks |

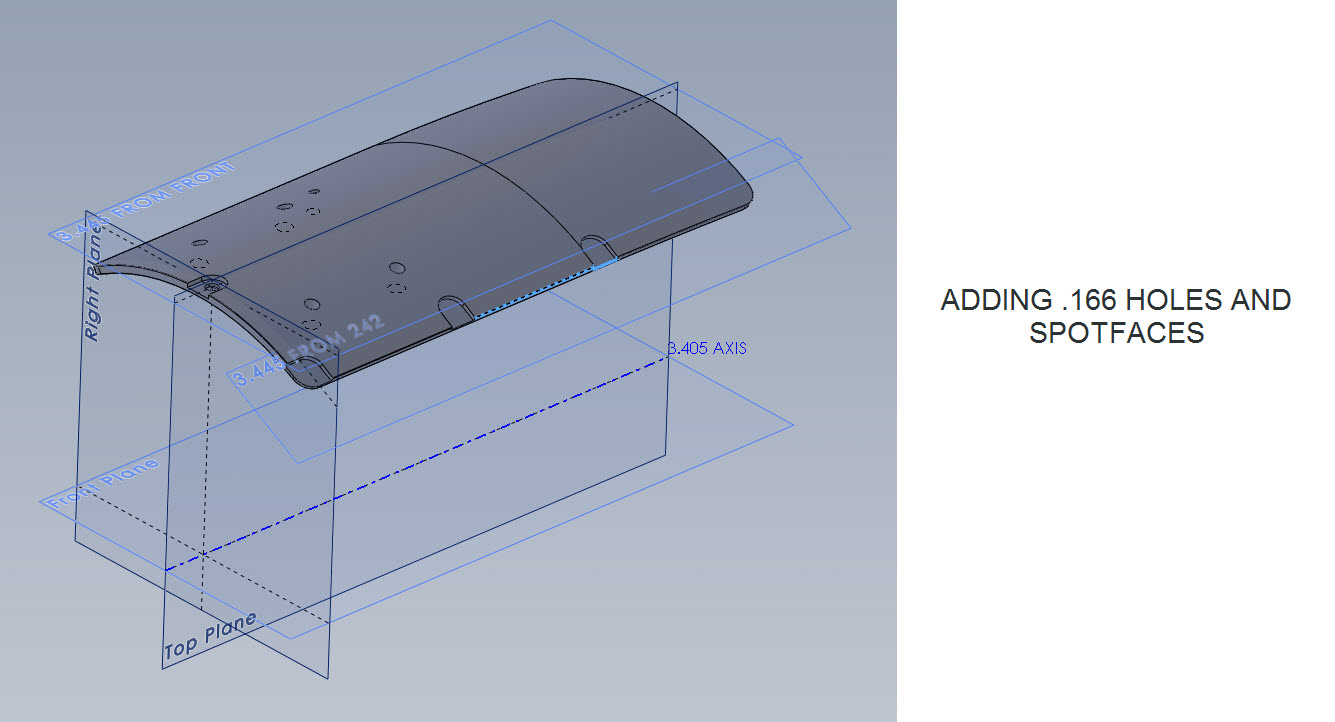

a second fixture to cut the spot faces and remove holding tabs | |
|

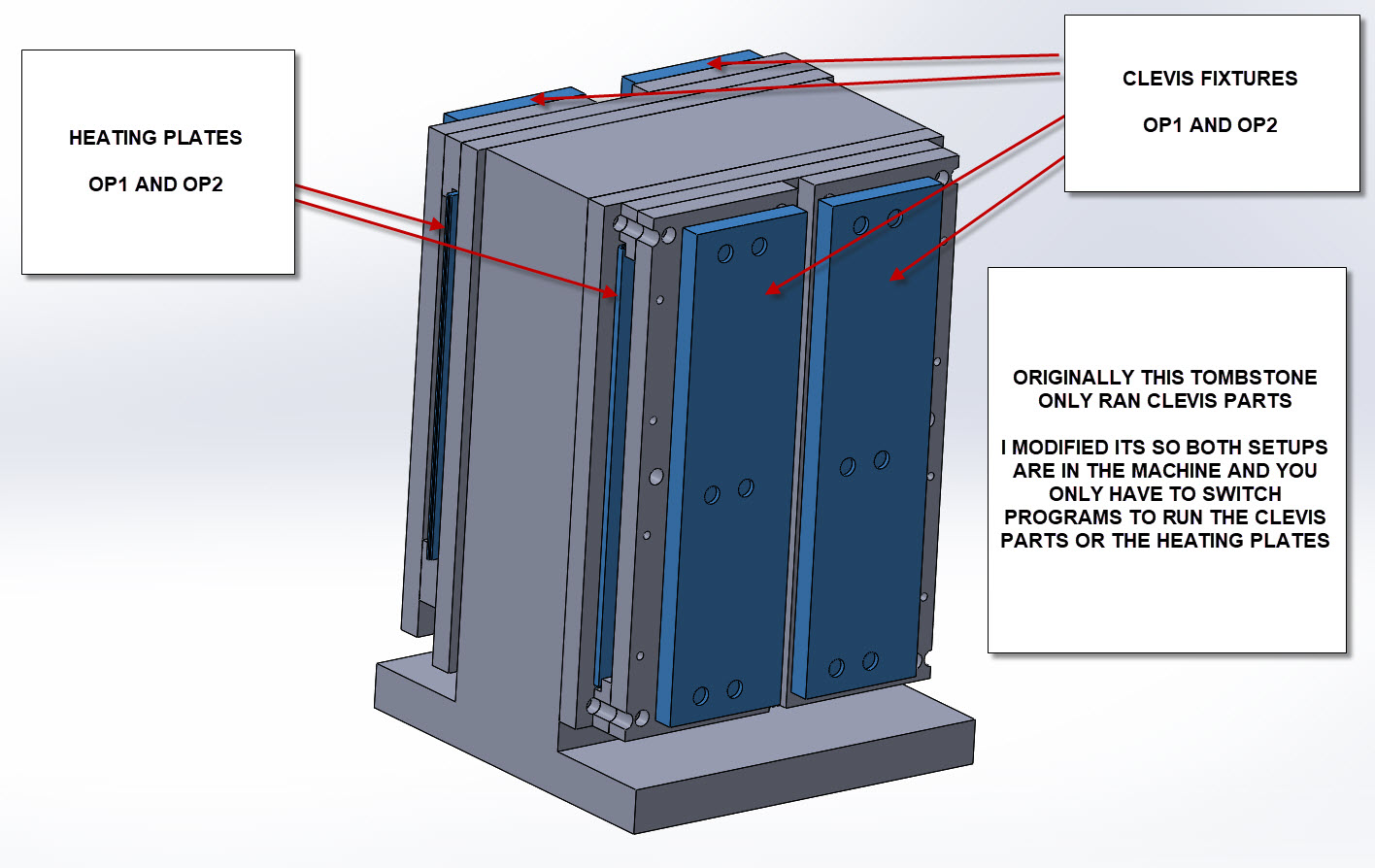

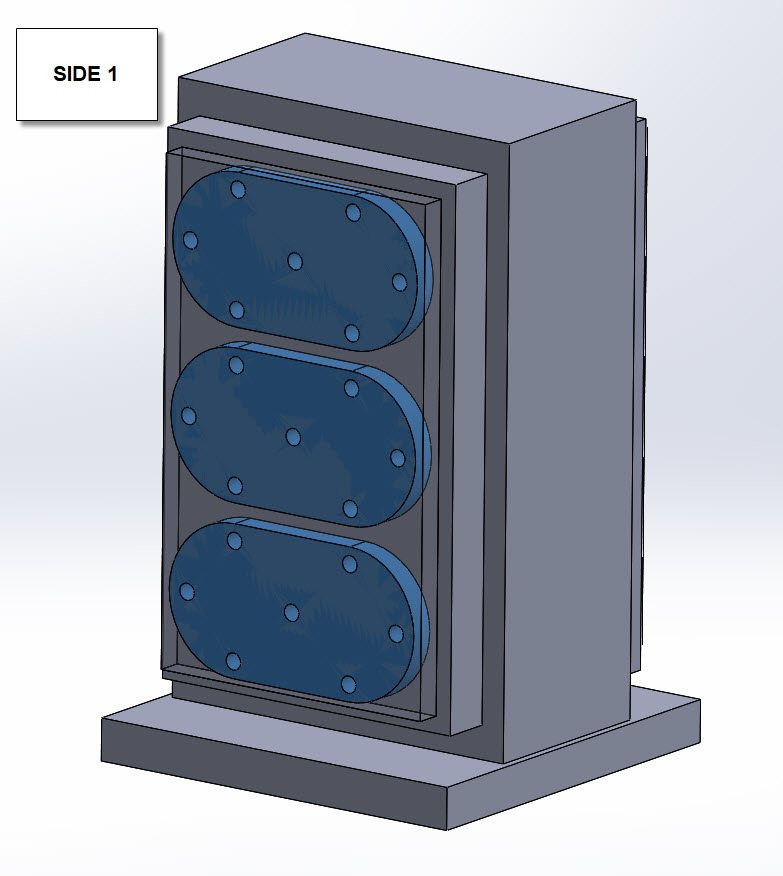

Includes multiple stations for multiple parts on each op |
Parts are steel qty 3000 | start in the center and flip to the outer columns for op2 |

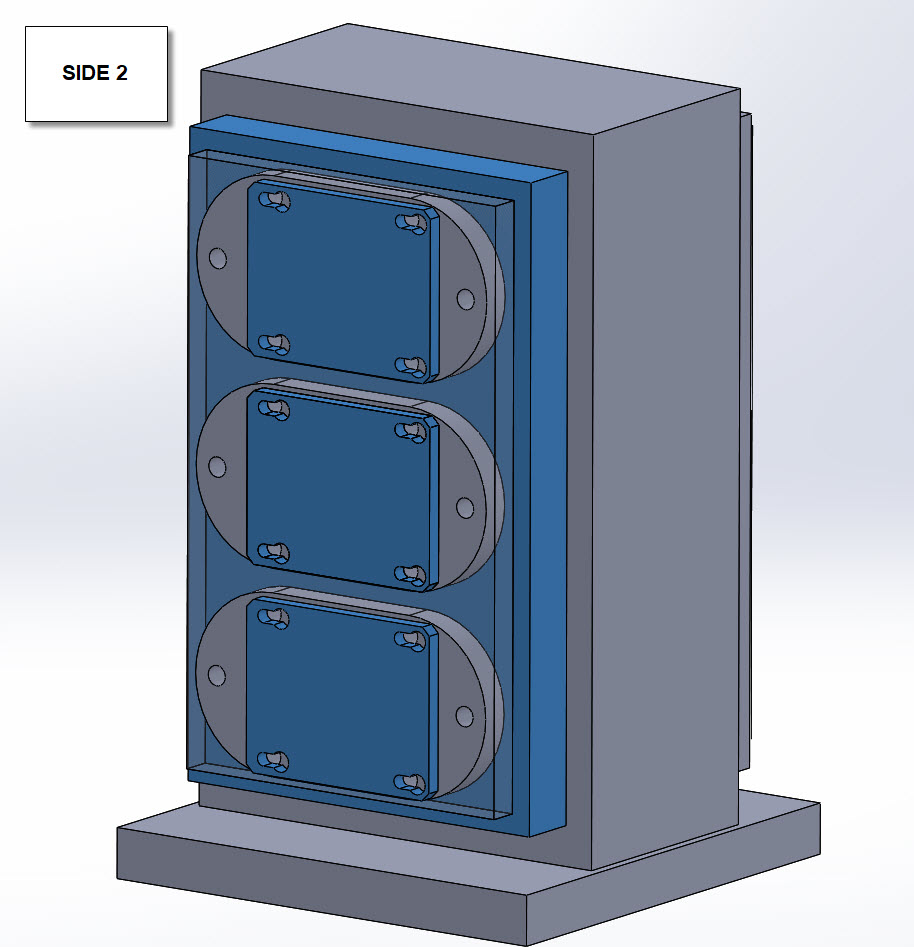

SIDE 2 AFTER PLATING
-

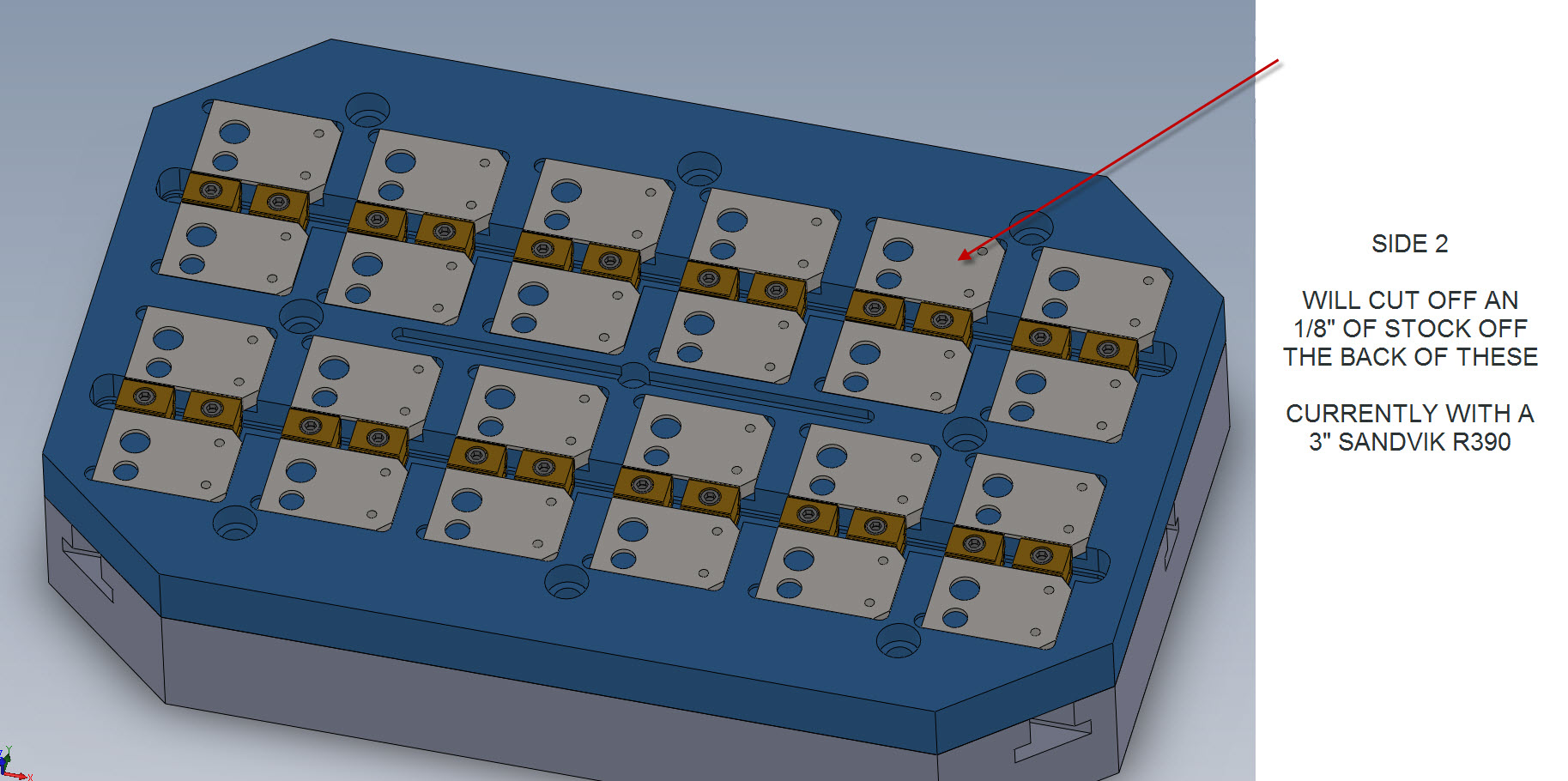

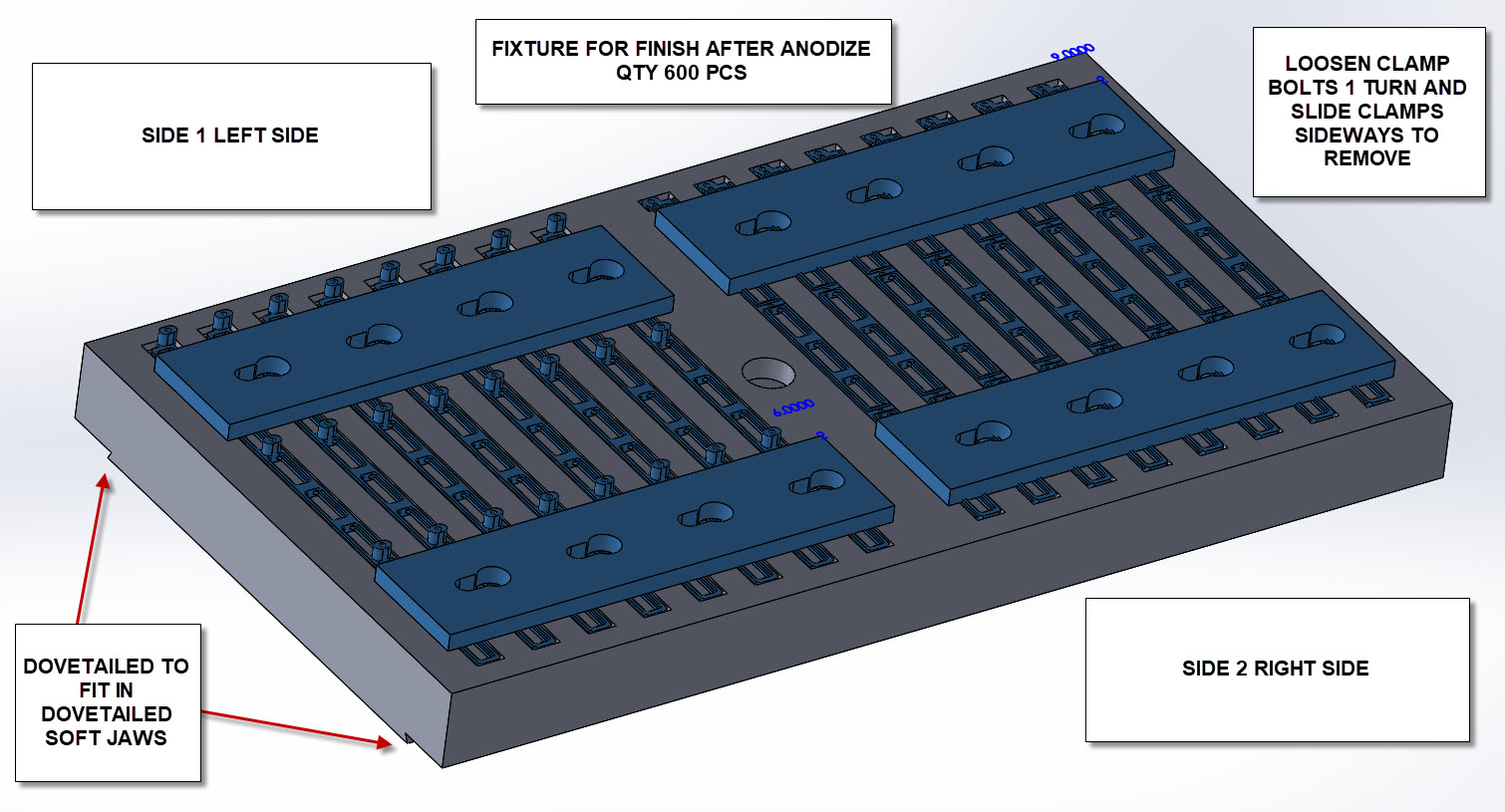

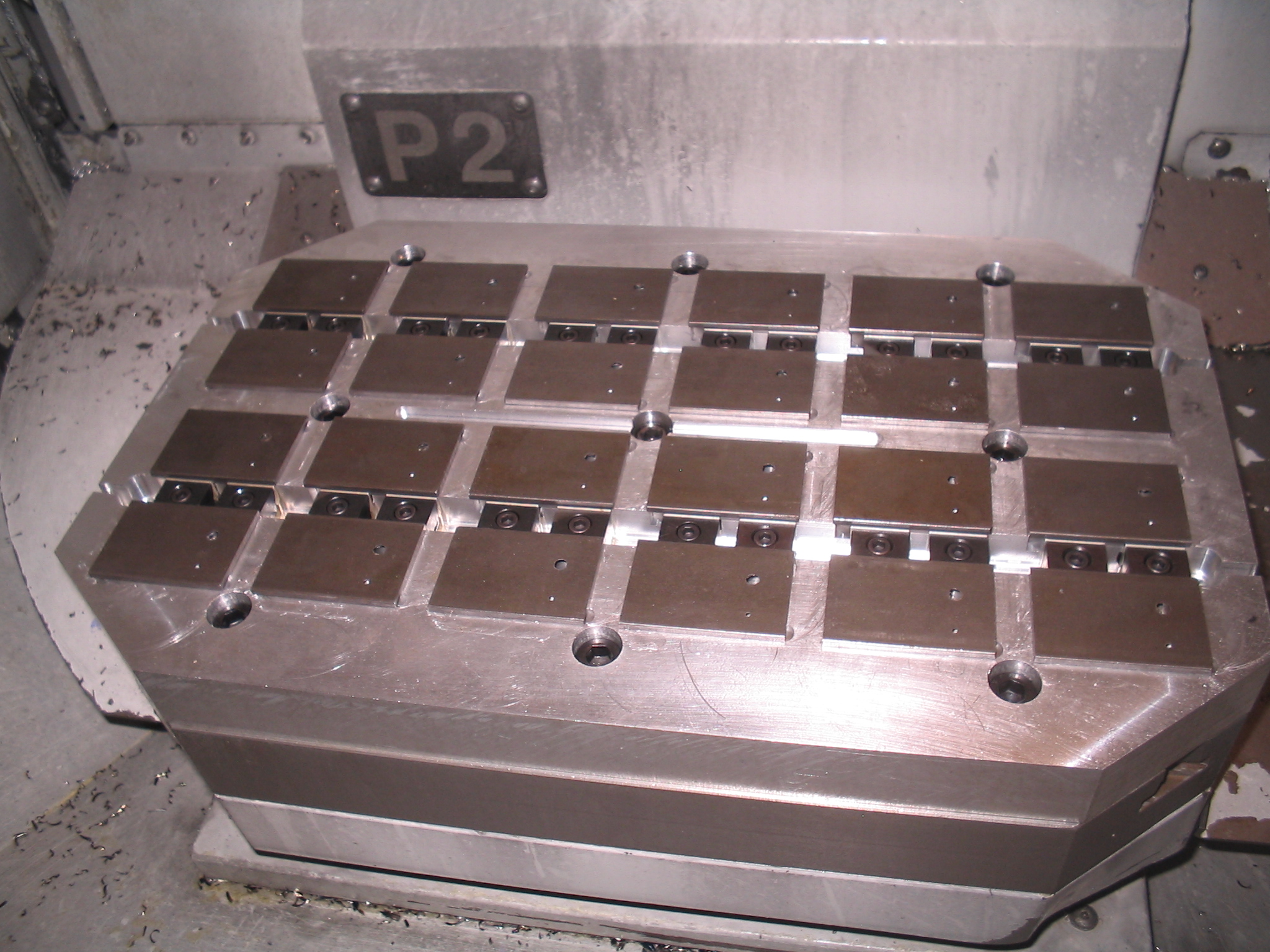

multipart fixturing designed in solidworks, inventor, pro/e for horizontal and vertical machining centers

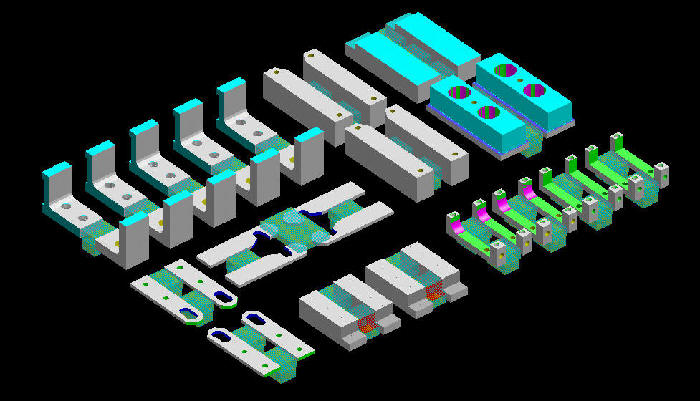

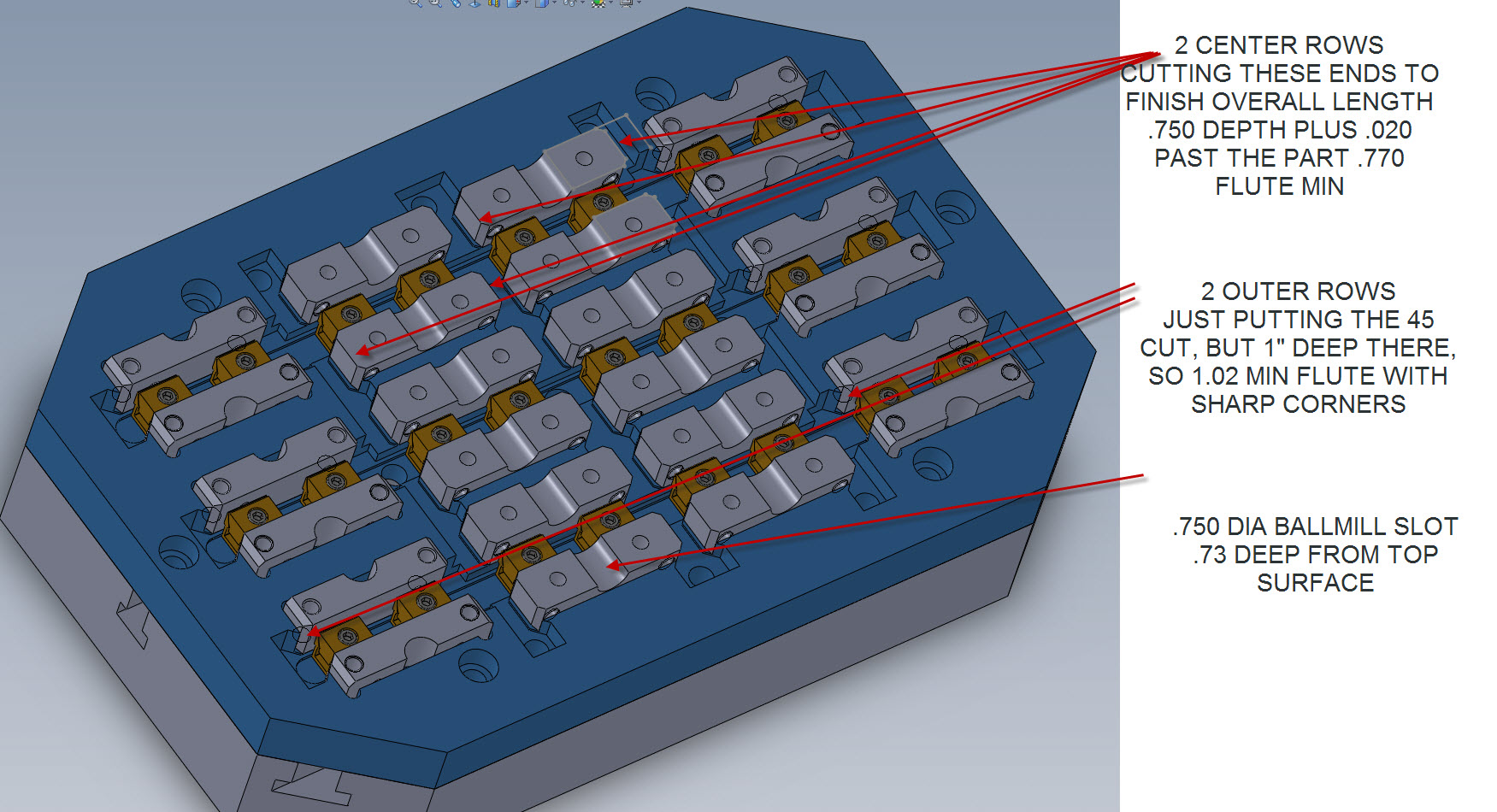

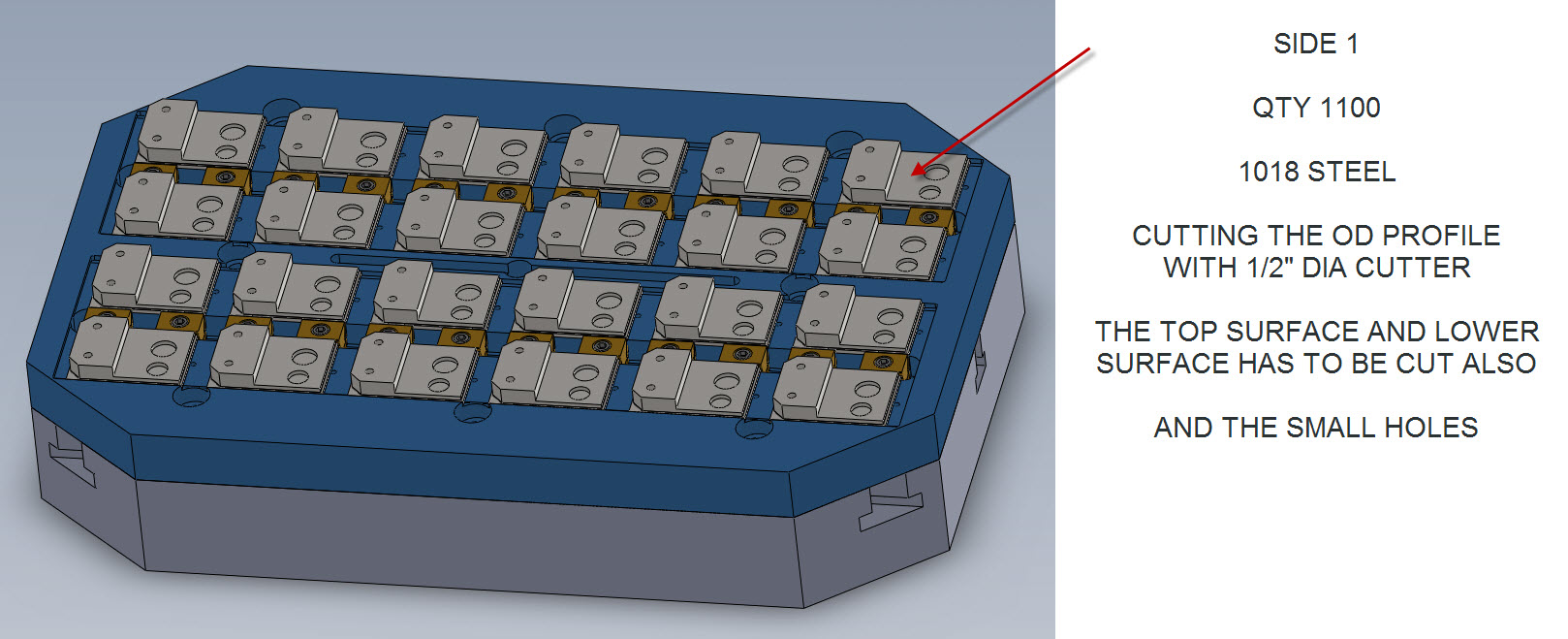

this fixture cuts multiple parts on the same fixture including some parts going thru multiple stages on the same fixture
-
indexing fixturing for 4th axis parts
-

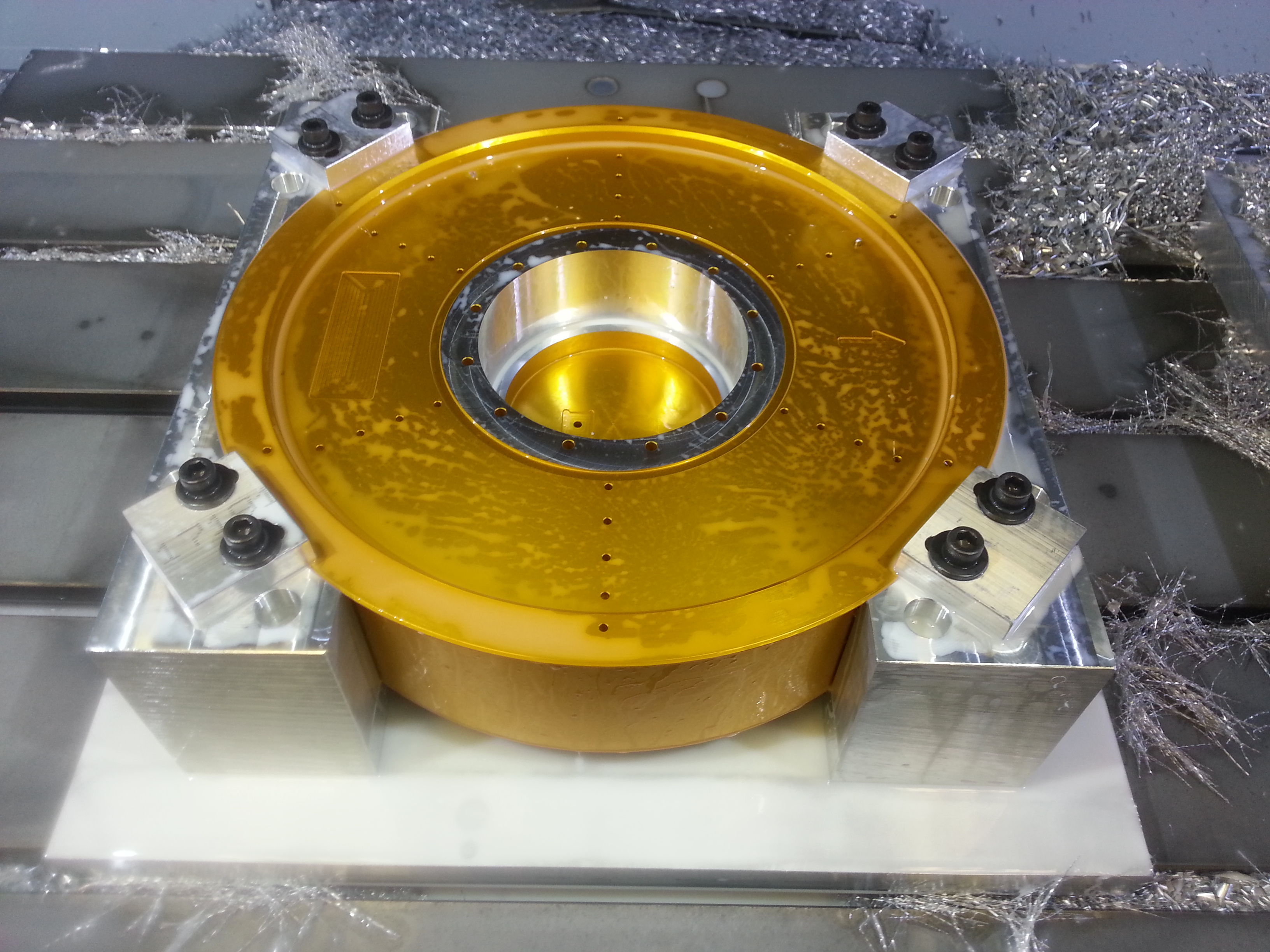

casting fixturing utilizing datum point clamping
-
lathe fixturing for castings
